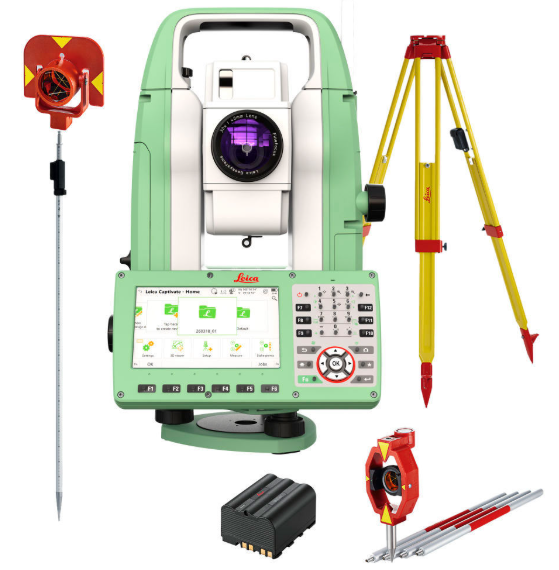

TS10 1" R1000 Total Station Package

Description

The TS10 1" R1000 Total Station Package is a high-performance surveying instrument designed to deliver exceptional accuracy, reliability, and efficiency for surveying, construction layout, infrastructure development, and engineering projects. Equipped with 1-second angular accuracy and R1000 reflectorless EDM technology, it enables fast and precise measurements of both prism and non-prism targets over long distances.

Built for demanding field conditions, the TS10 features a rugged IP66-rated design, advanced onboard software, wireless connectivity, and an intuitive touchscreen interface, making it ideal for professional surveyors, civil engineers, and contractors. It can operate as a standalone surveying solution or integrate seamlessly with modern surveying workflows.

Applications

• Land & Topographic Surveying

• Construction Layout & Setting Out

• Infrastructure Projects

• Road & Highway Construction

• Building & Structural Surveys

• Mining & Quarry Operations

• Utility & Pipeline Projects

• Industrial Plant Construction

• As-Built Surveys & Monitoring

Key Features

• 1" high-precision angular accuracy

• R1000 reflectorless EDM with long-range measurement capability

• Prism measurement range up to 3,500 m (over 10,000 m in long-range mode)

• Reflectorless measurement up to 1,000 m

• 5" color touchscreen display with intuitive interface

• Bluetooth®, WLAN, USB, and RS232 connectivity

• Electronic Guide Light (EGL) for faster stakeout

• Laser plummet for quick and accurate setup

• IP66-rated dust and water protection

• Long-lasting rechargeable lithium-ion battery

• Rugged design for harsh outdoor environments

• Compatible with professional surveying software and data collection systems

Specifications

• Angular Accuracy: 1"

• Reflectorless Range: Up to 1,000 m

• Prism Range: Up to 3,500 m (Long Range Mode: >10,000 m)

• Distance Accuracy (Prism): ±1 mm + 1.5 ppm

• Display: 5" WVGA Color Touchscreen

• Connectivity: Bluetooth®, WLAN, USB, RS232

• Laser Plummet: Class 2

• Ingress Protection: IP66

• Operating Temperature: -20°C to +50°C (Arctic version available to -35°C)

• Weight: Approximately 4.4–4.9 kg

• Applications: Surveying, Construction, Civil Engineering, Infrastructure, Mining, and Industrial Projects
